• Solid brass construction, finished in high quality chrome
• Anti-scald thermostatic control
• Minimum 0.5 bar water pressure, 1.0 bar recommended for best performance
• Set includes: concealed thermostatic shower valve, wall-mount shower arm, 8" shower head, slider rail kit
• 10 Year Guarantee

Contemporary chrome shower mixer set to complement modern bathroom interiors. This shower mixer works with as little as 0.5 bar water pressure and is finished in high shine polished chrome.

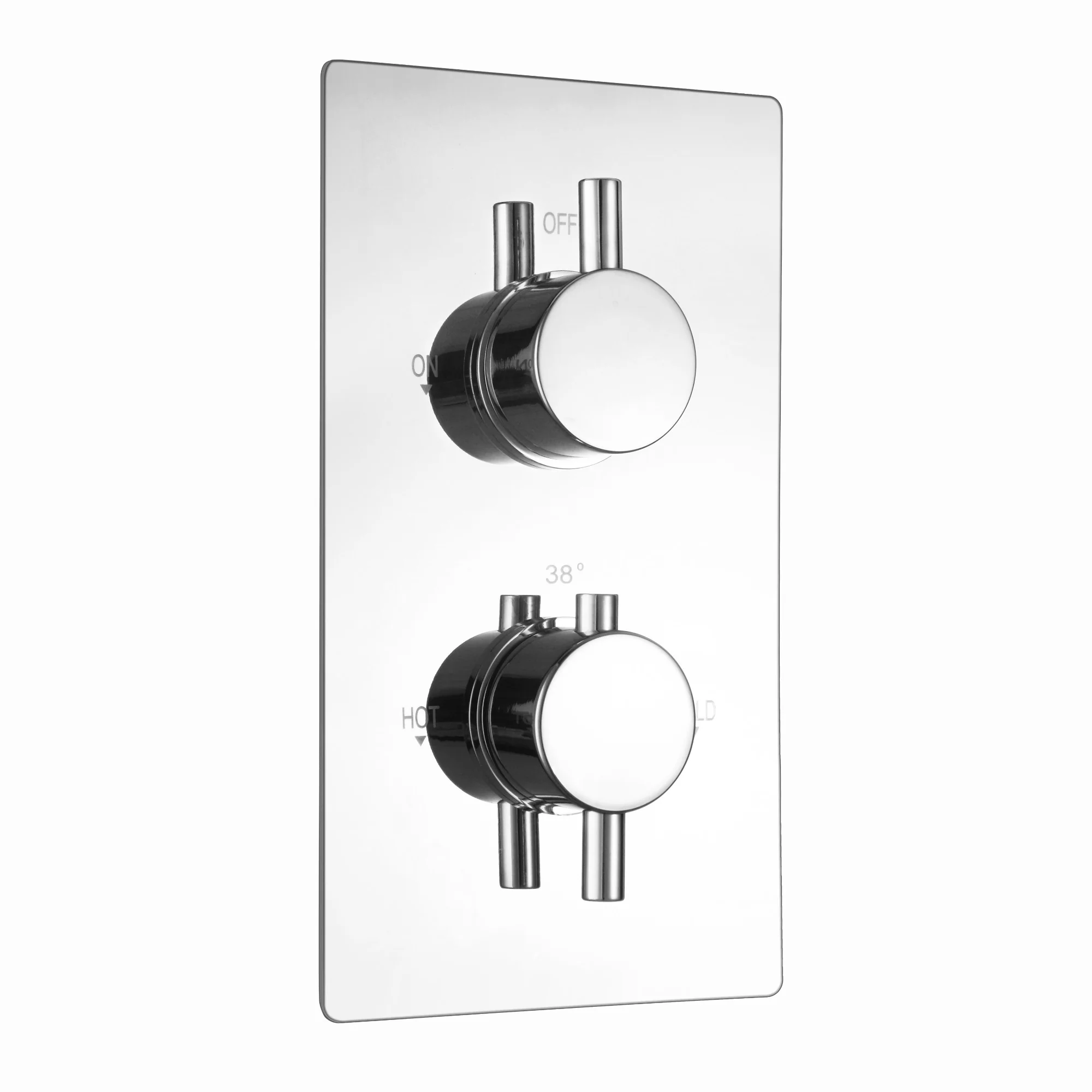

NAPLES CONCEALED THERMOSTATIC SHOWER MIXER VALVE

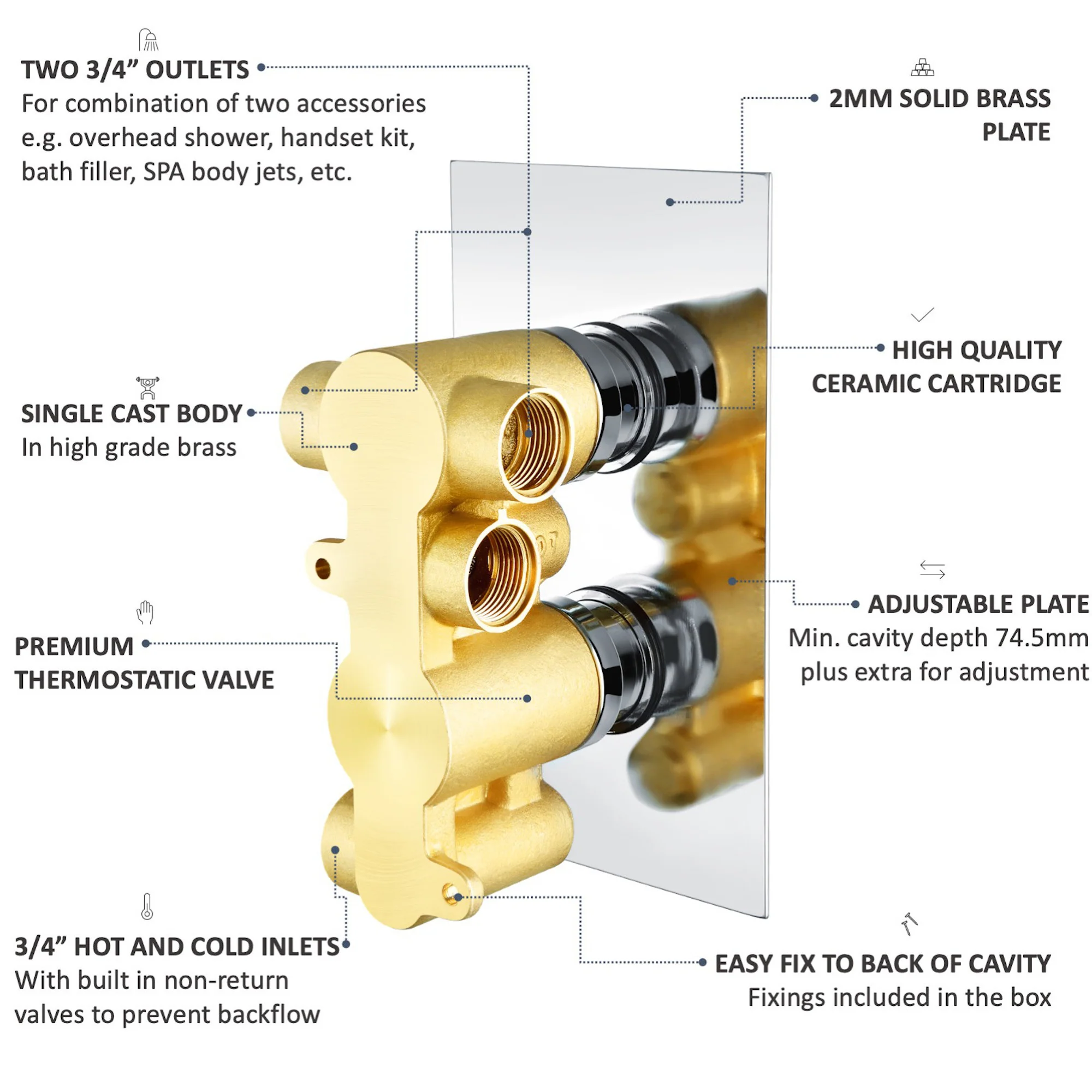

Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.

• 1/2" outlet diameter
• 3/4" hot/cold inlets with built-in non-return valves to prevent backflow

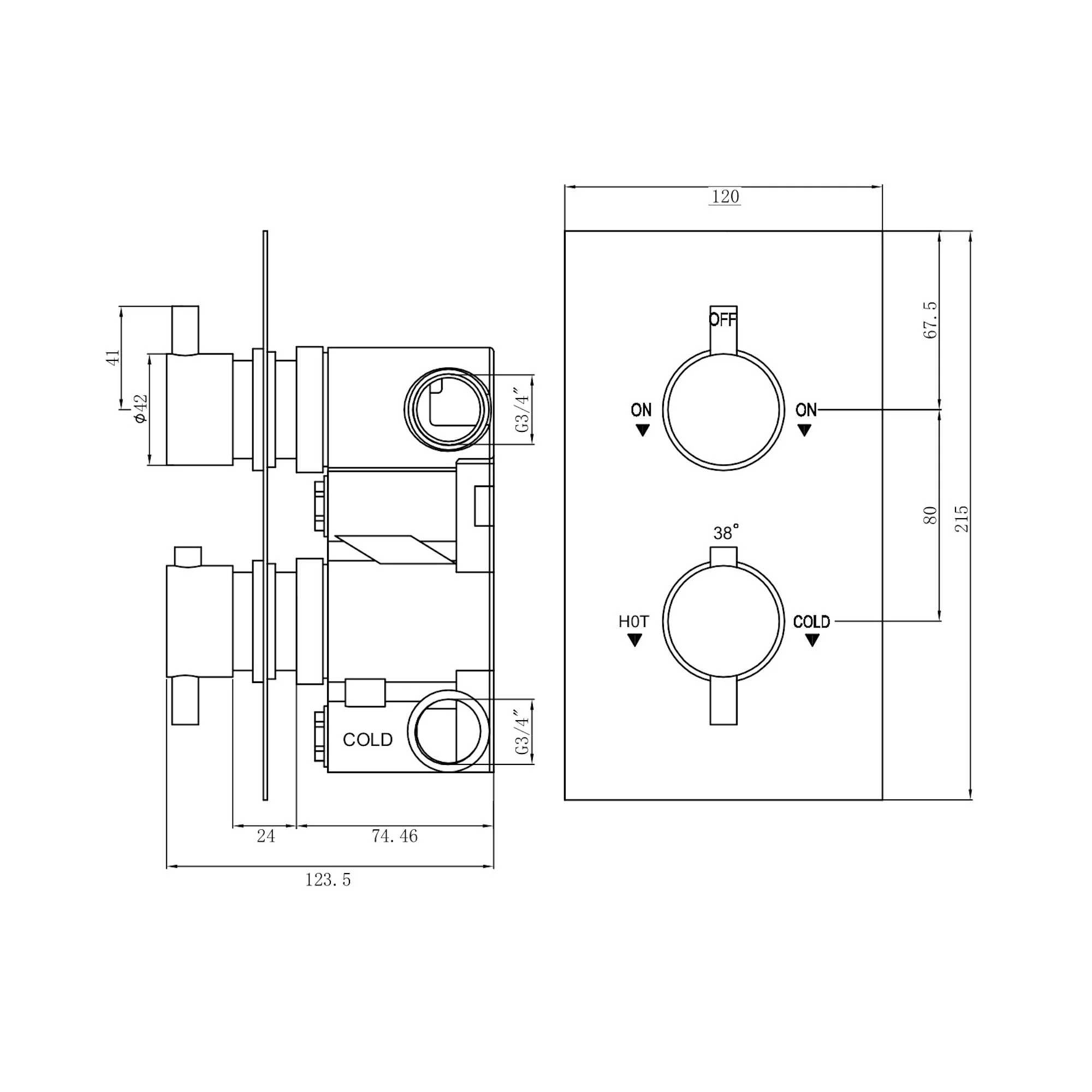

• For more dimensions please see technical drawing

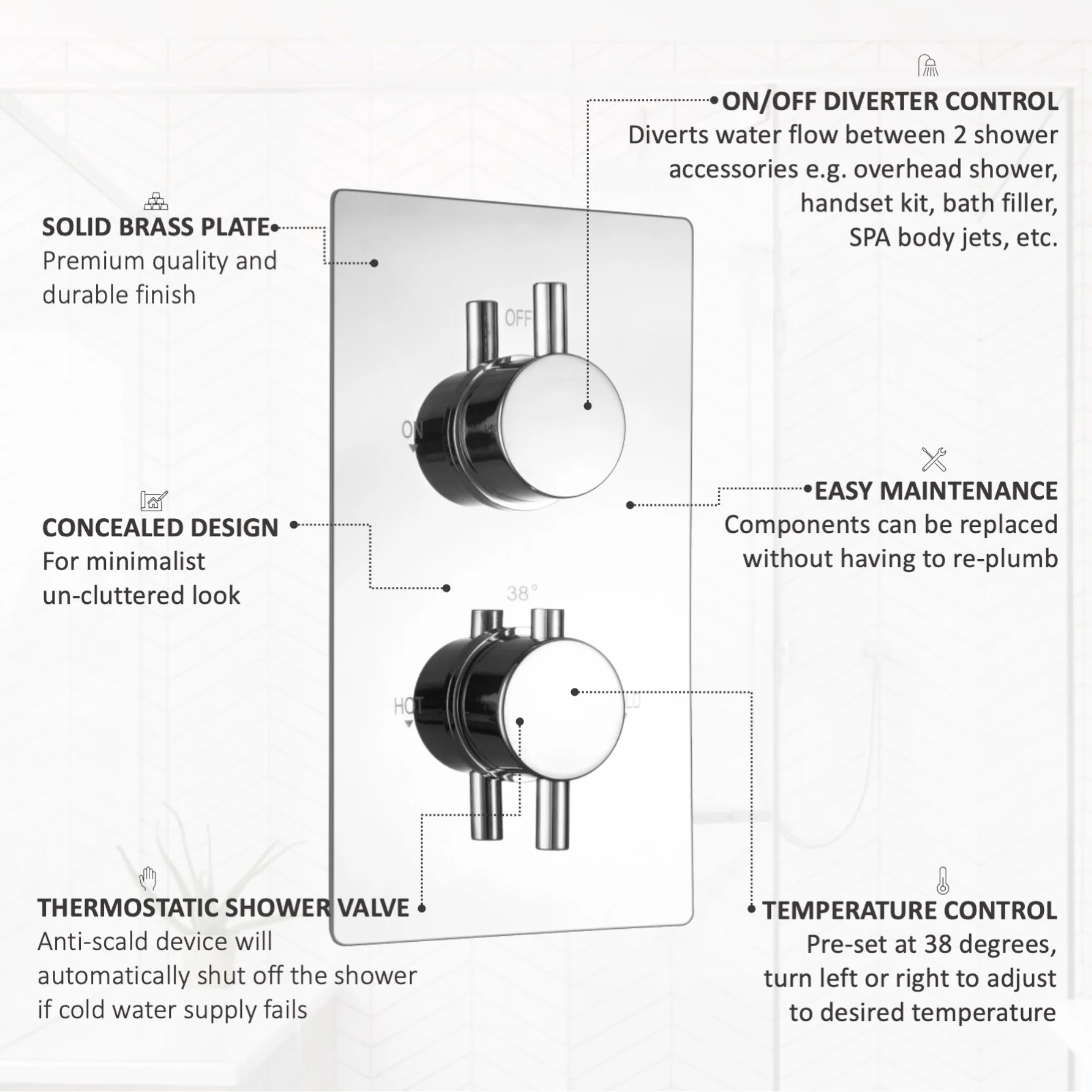

• Top dial: diverter / on/off
• Bottom dial: temperature control

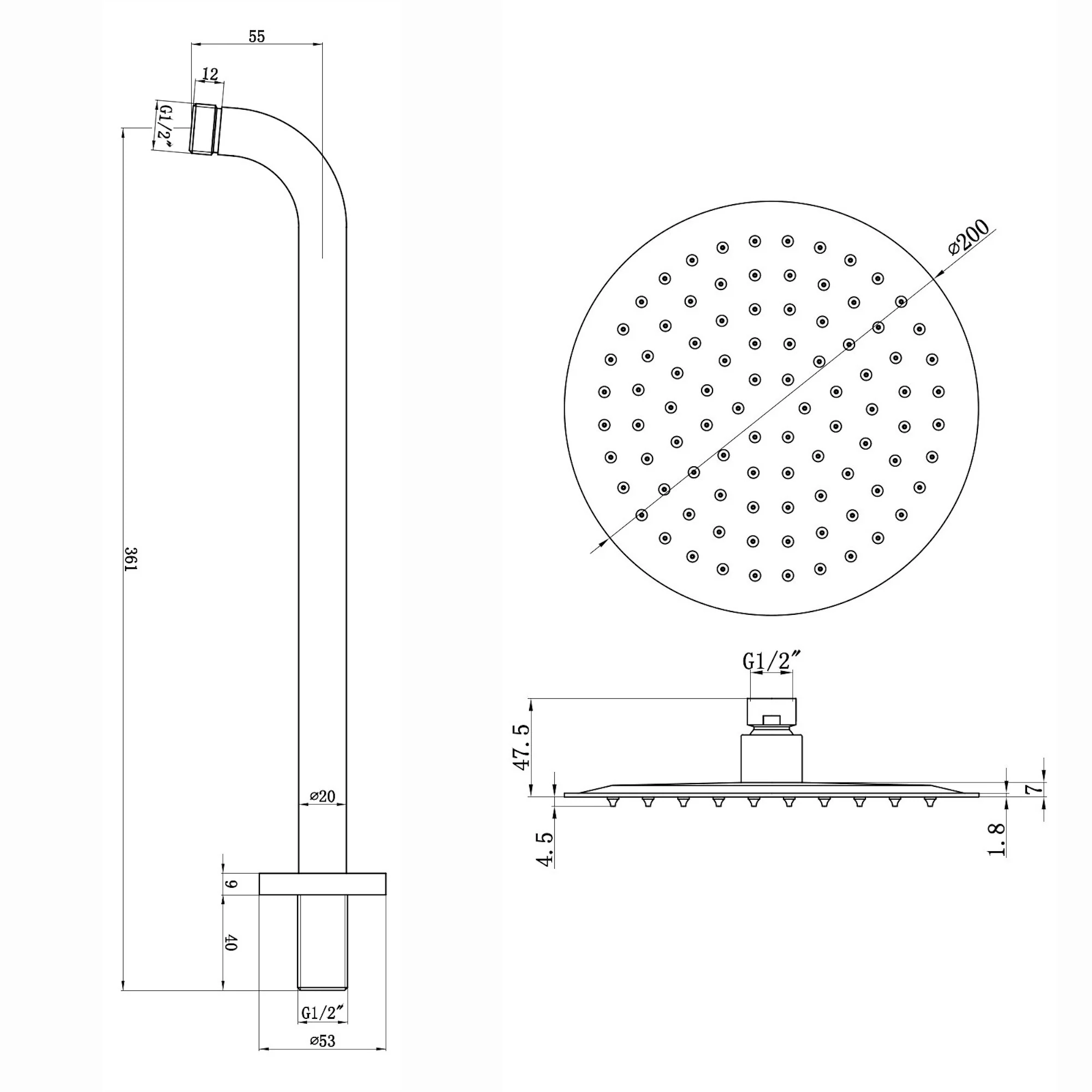

FIXED SHOWER ARM AND HEAD FEATURES

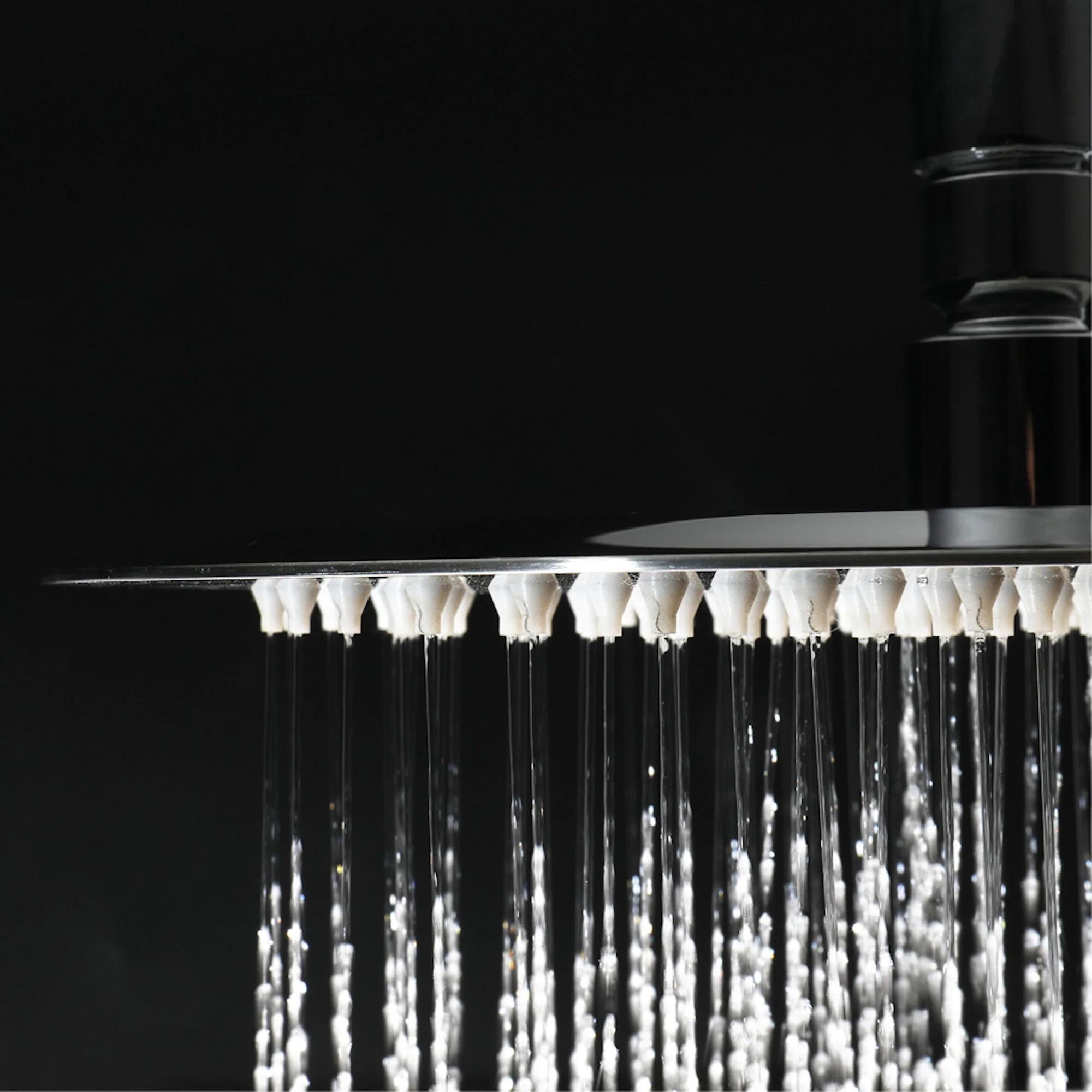

• 200mm showerhead - stainless steel with anti-limescale easy-clean rubber jets, 1/2" connection, swivel ball joint
• 320mm wall fixed shower arm

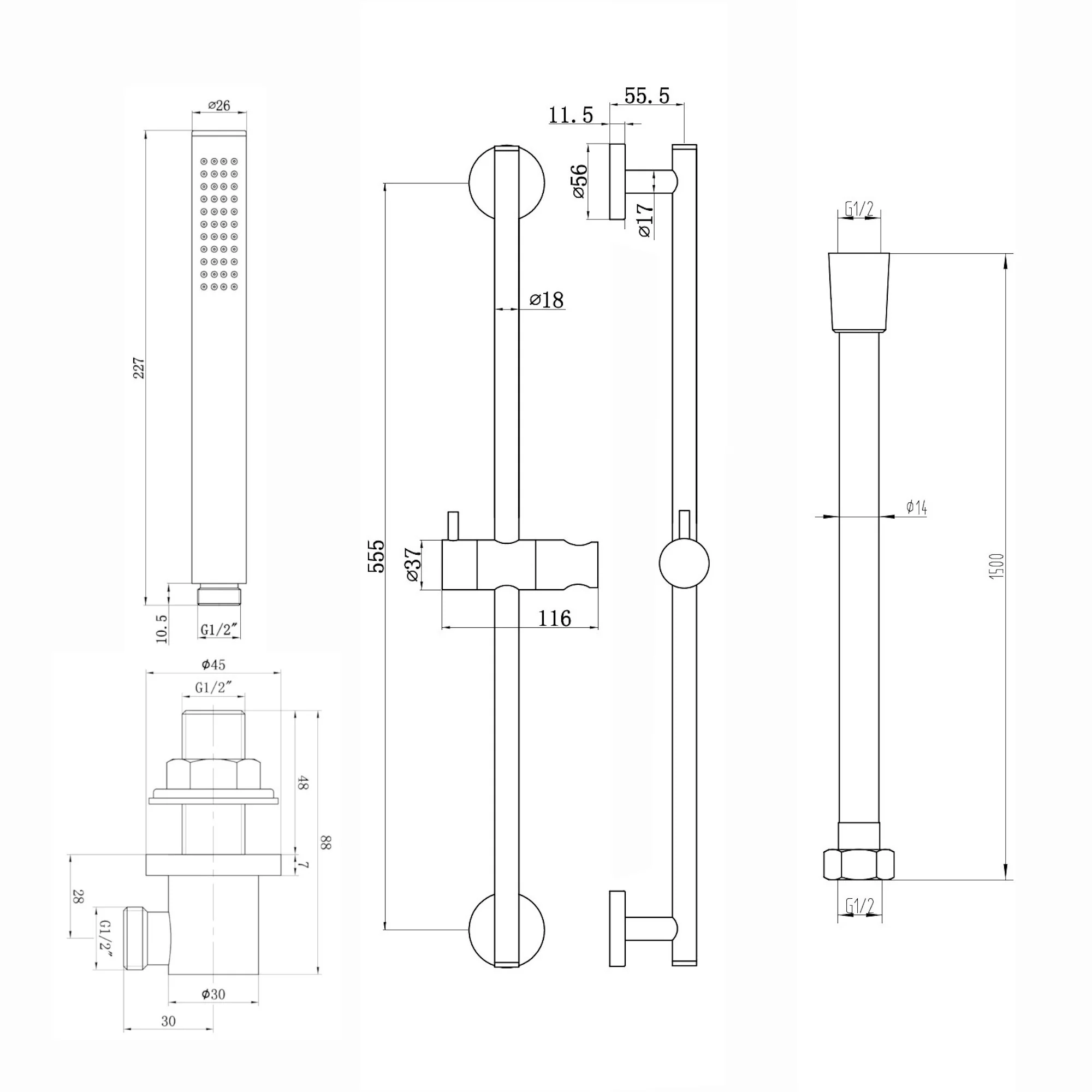

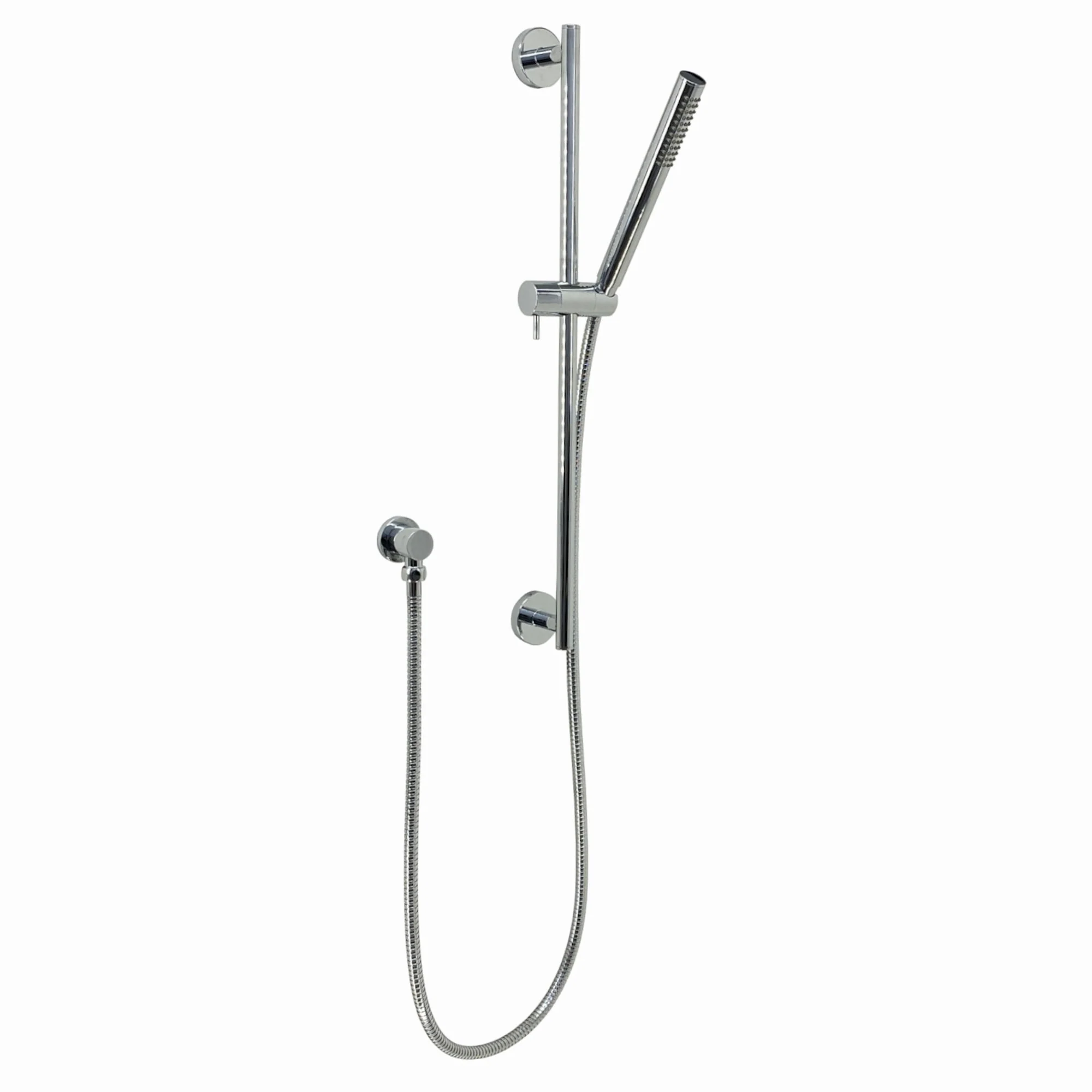

SLIDER RAIL KIT FEATURES

• Handheld showerhead - features anti-limescale easy-clean rubber jets, 1/2" connection
• Slider rail bar with universal fit bracket
• Shower hose - stainless steel, 150cm
• Brass wall outlet

WORKING REQUIREMENTS

Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
