• Solid brass construction, finished in high quality black
• Anti-scald thermostatic control
• Minimum 0.5 bar water pressure, 1.0 bar recommended for best performance
• Set includes: concealed thermostatic shower valve, wall-mount shower arm, 8" shower head, 4 x body jets
• 10 Year Guarantee

Contemporary black shower mixer set to complement modern bathroom interiors. This shower mixer works with as little as 0.5 bar water pressure and is finished in a matt black finish.

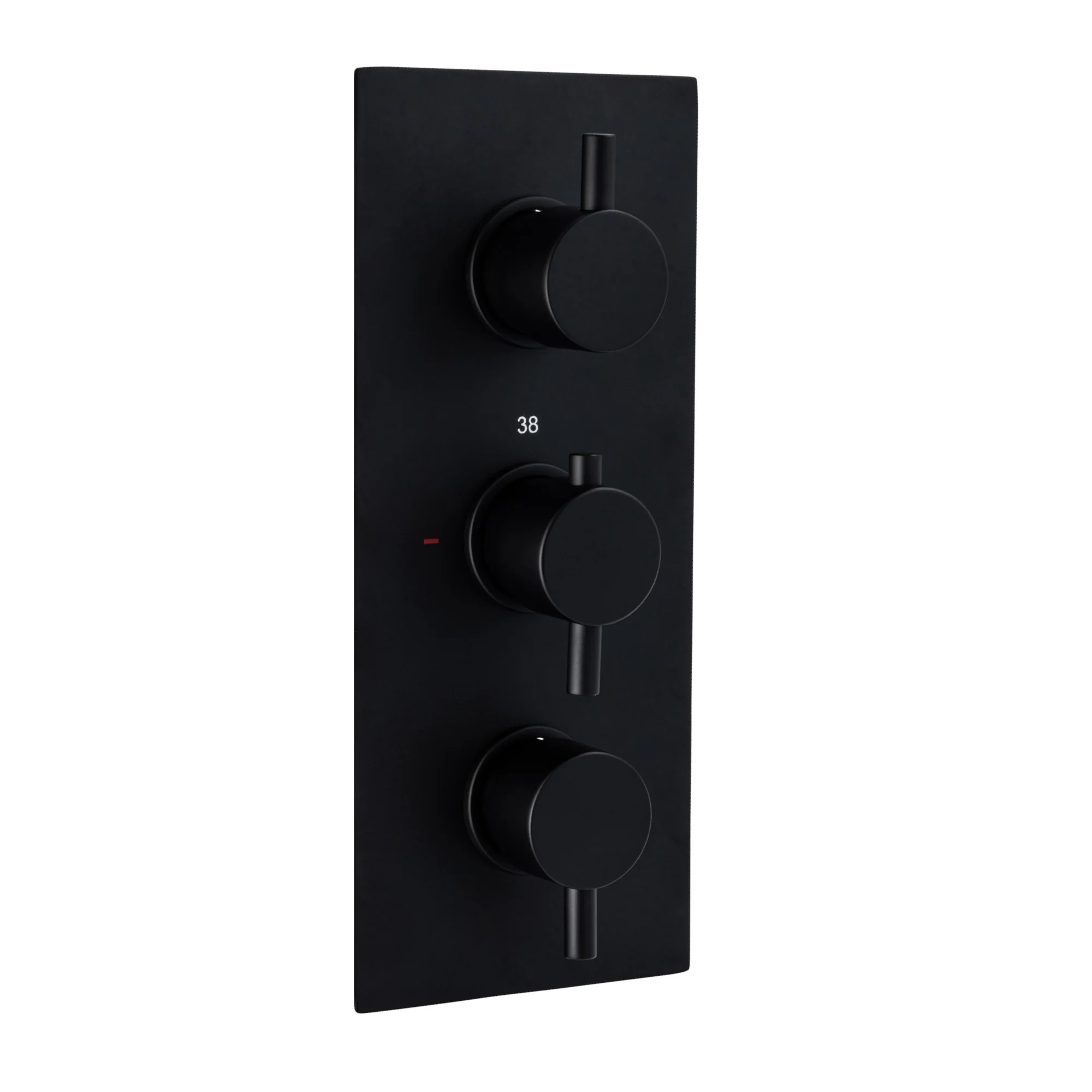

NAPLES CONCEALED THERMOSTATIC SHOWER MIXER VALVE

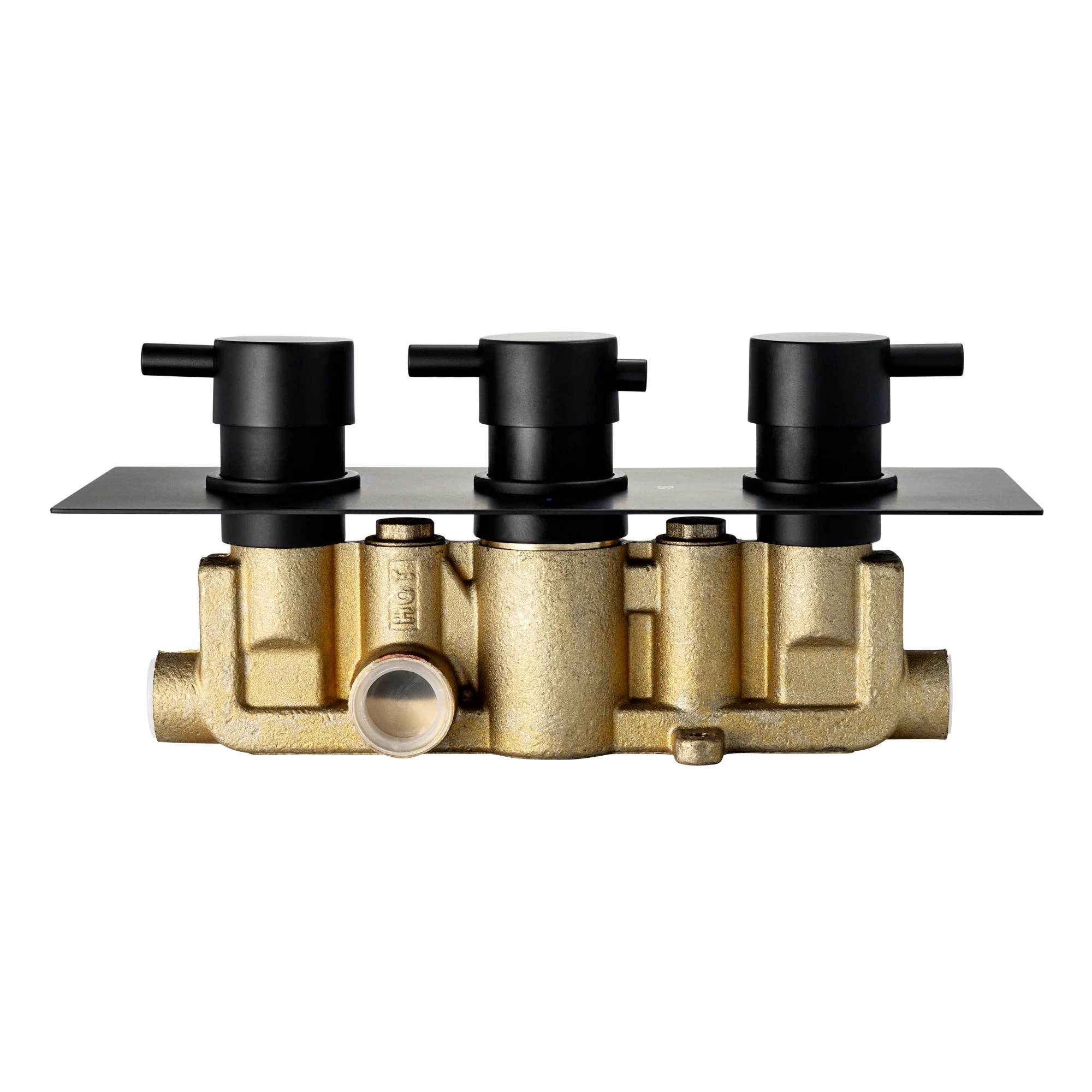

Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.

• 1/2" outlet diameter
• 3/4" hot/cold inlets with built-in non-return valves to prevent backflow

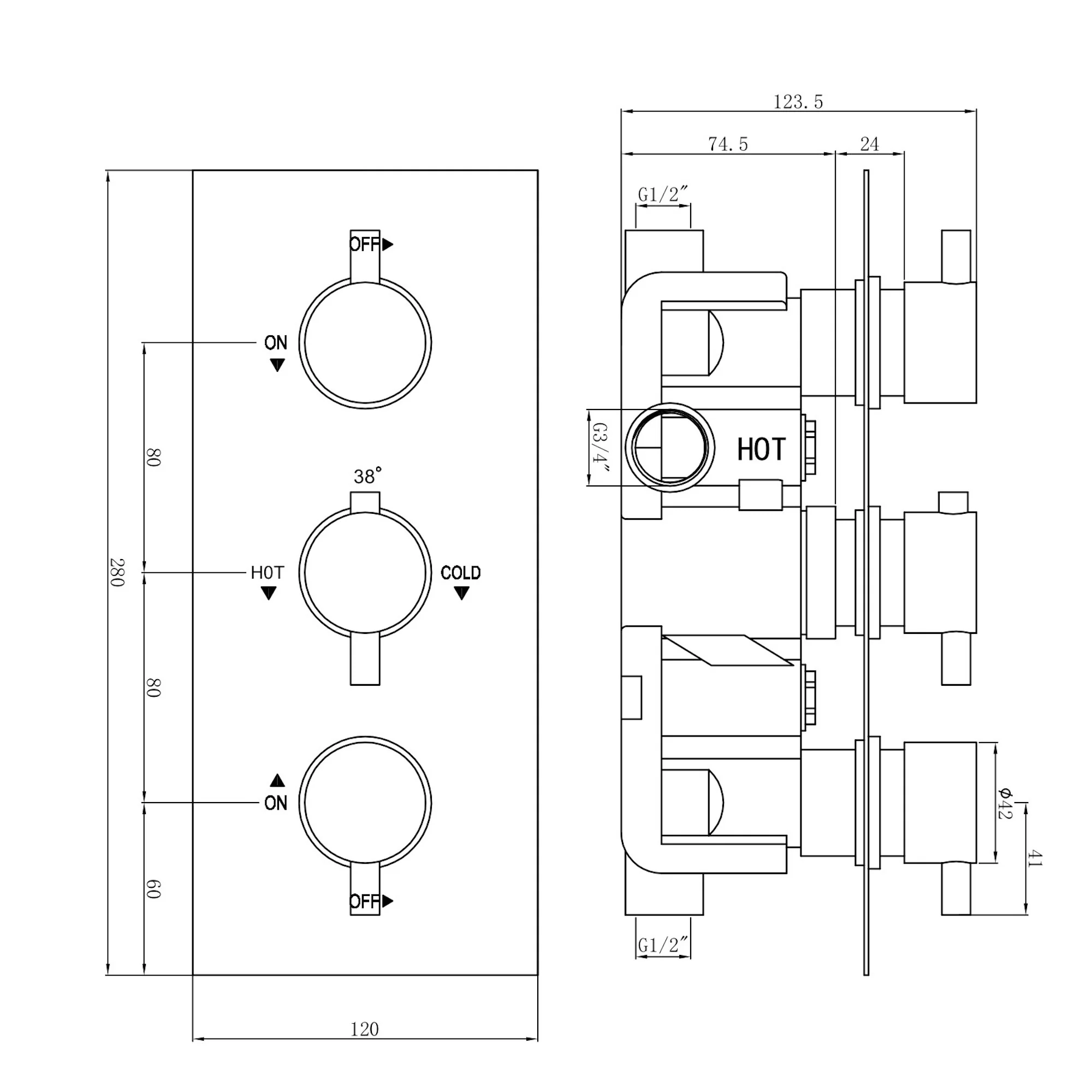

• For more dimensions please see technical drawing
• Top dial: on/off for outlet 1
• Middle dial: temperature control
• Bottom dial: on/off for outlet 2

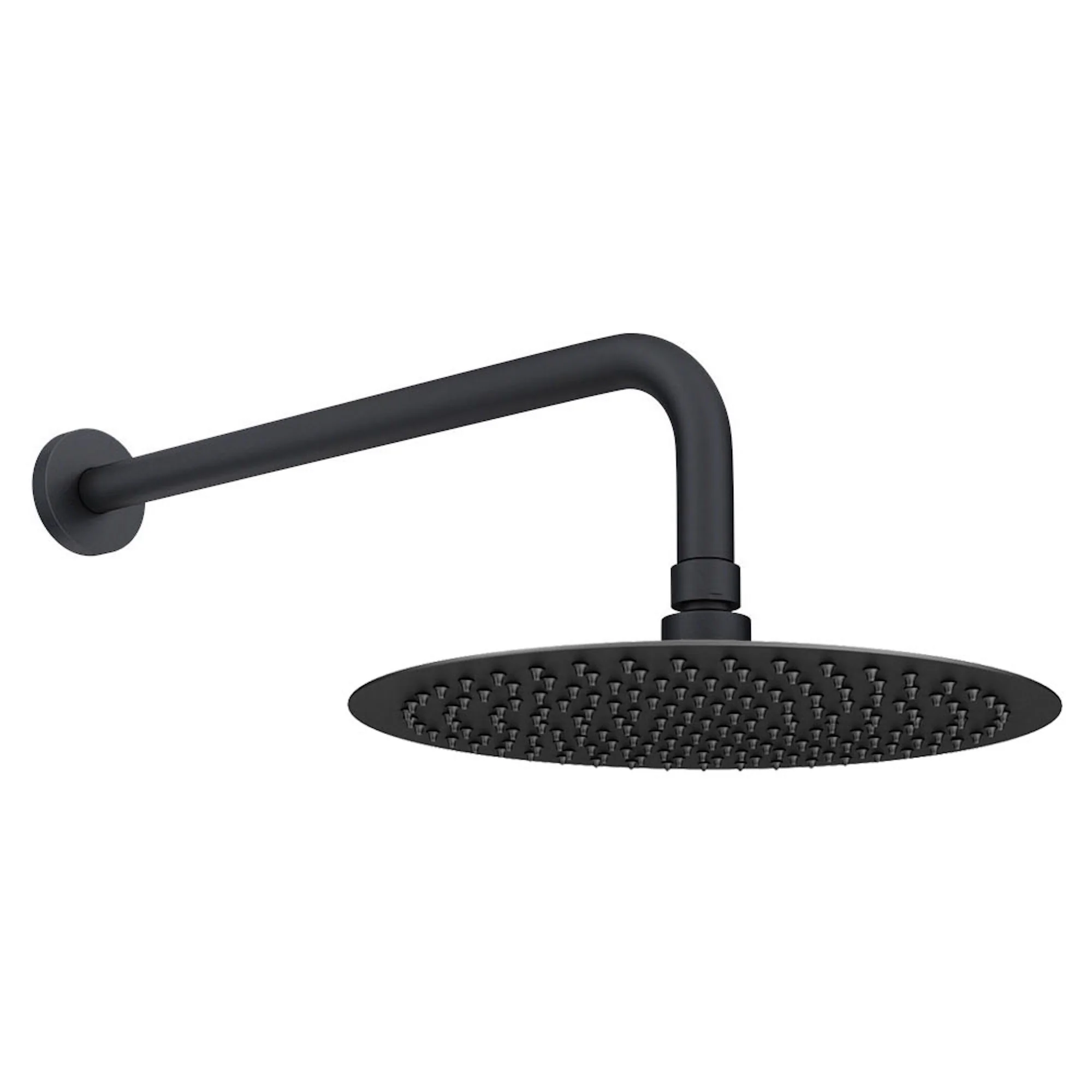

FIXED SHOWER ARM AND HEAD FEATURES

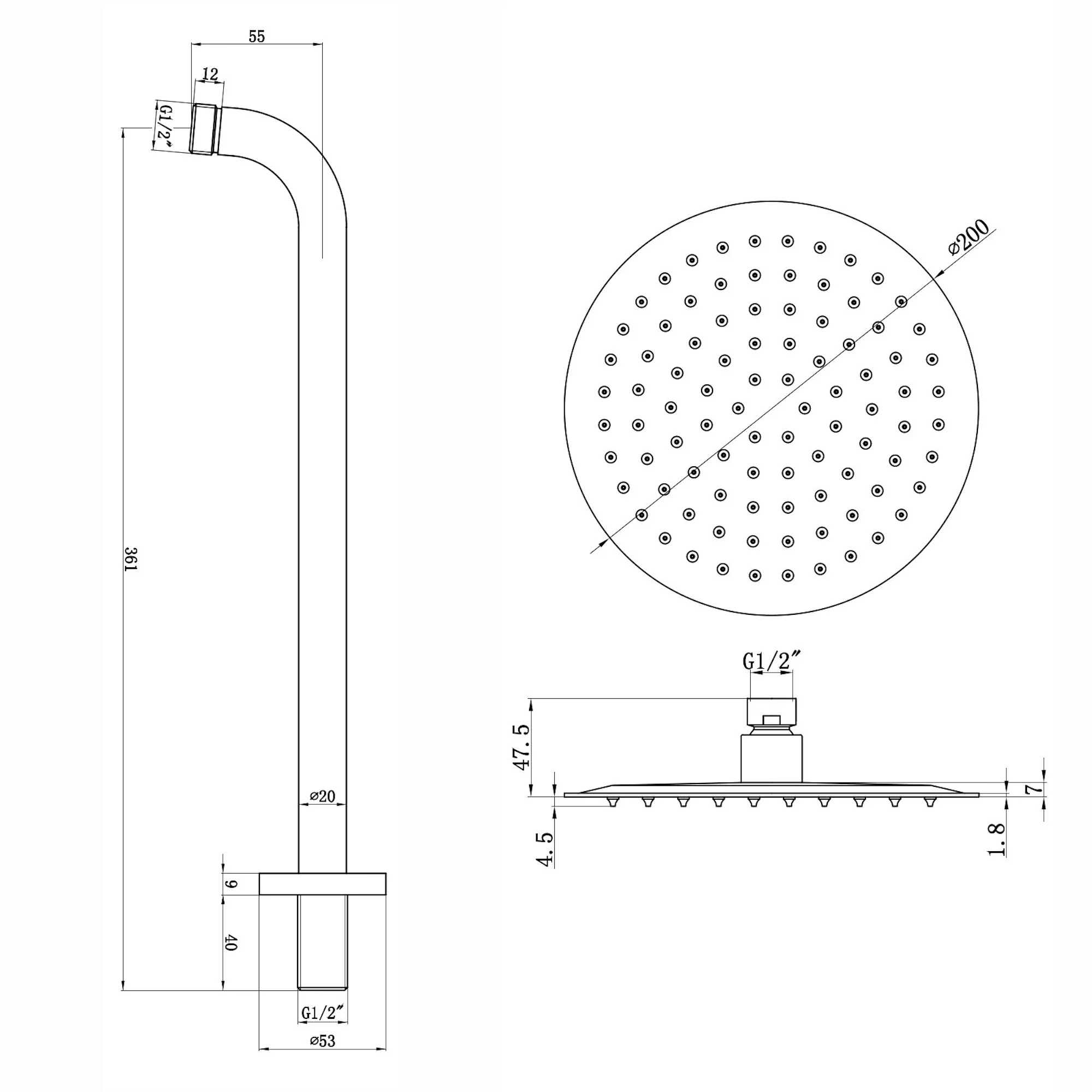

• 200mm showerhead - stainless steel with anti-limescale easy-clean rubber jets, 1/2" connection, swivel ball joint
• 320mm wall fixed shower arm

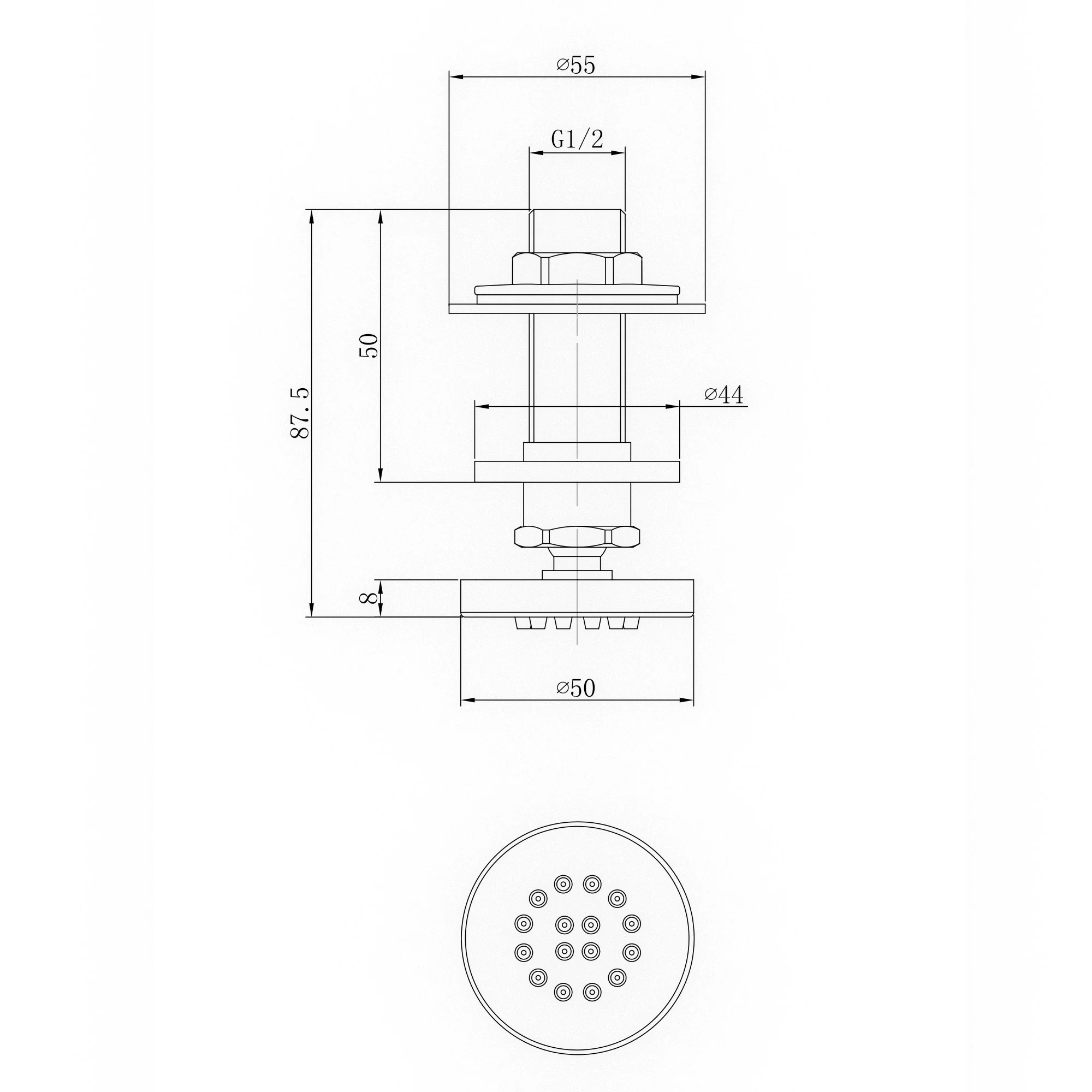

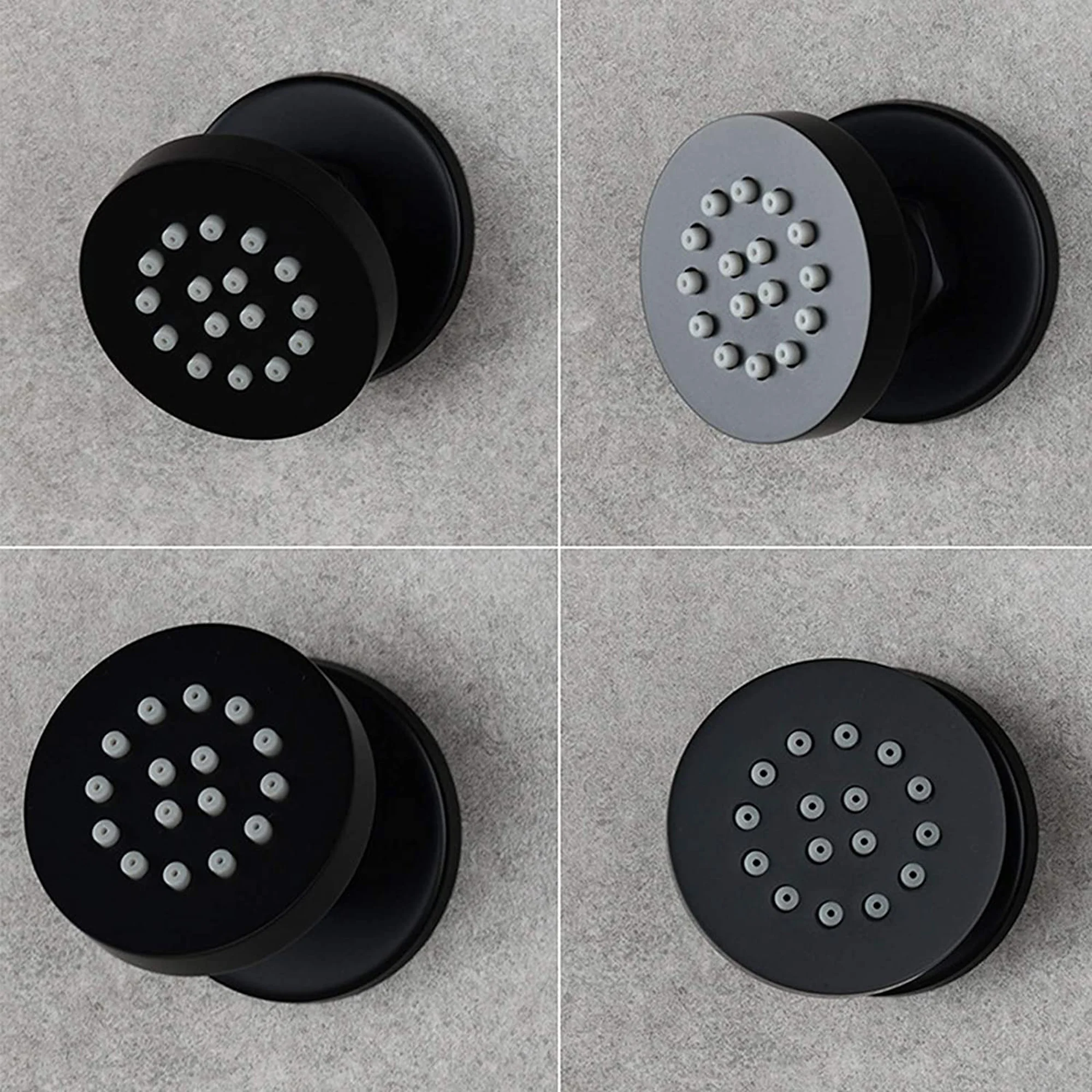

BODY JET FEATURES

• Anti-limescale easy-clean rubber jets, 1/2" connection
• Adjustable angle
• Shower kit includes 4 x body jets

WORKING REQUIREMENTS

Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
